CTC Color LED

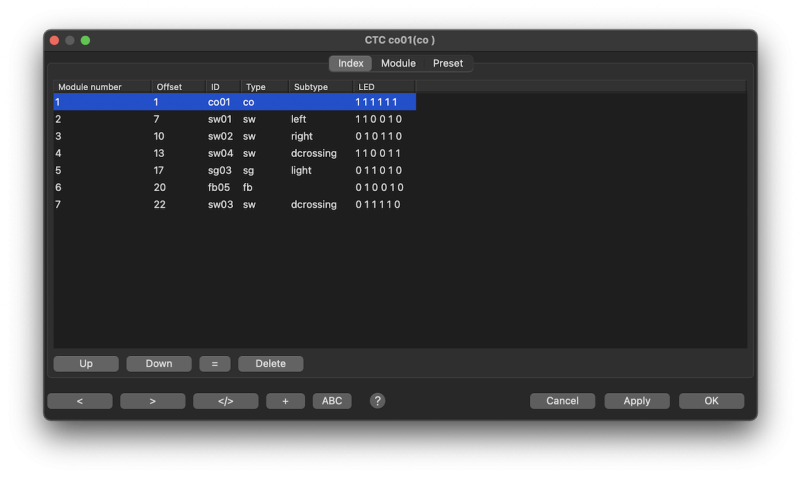

Index
Up/Down
Move the selected module in the list.
The sorting must be the module number column, which is default.
Equal sign
Renumber the modules as listed and calculate the LED offset for each module in the chain.
Delete
Delete the selected CTC module.

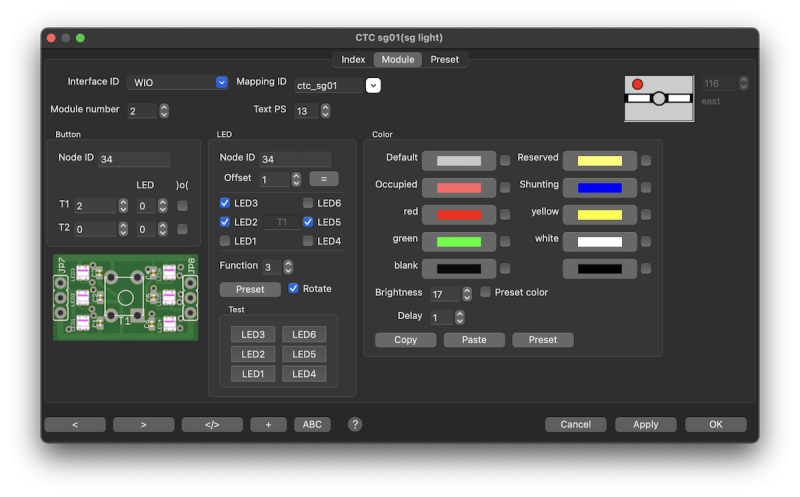

Module
Interface ID
The Interface ID of the CTC controller.
Module number
The module number in the CTC chain.
This number is used to calculate the LED offset.
Mapping ID
The Mapping ID is only used for CTC simulation in this plan file.
Leave empty for normal setups.
Text PS
Text point size in case of display simulation.
Button
Node ID
The Node ID on wich this button is connected as input.
T1
The input address.
LED
The optional feedback LED which will light in case the button is pressed.
LED
Node ID
The Node ID on which the WS29812 Pixel chain is connected.
Offset
The WS2812 chain offset.
LED1-LED6
Selecting the active LEDs is done by three state checkboxes:
| Checkbox state | Meaning | Remark |
|---|---|---|
 | Not used | LED is electrically bridged. |
 | Skipped | Is addressable but not used by this CTC setup.1) |
 | Used |
Note: At the time of writing the 'Skipped' checkbox state is not possible using Linux Mint DE. (LMDE) See Forum(DE)
Function
If the function LED is other then default it can be specified by setting this to > 0.
A function LED is for example the LED which shows the signals aspect.
AON
Always ON, permanently lit LED; the color setting is made in the lower right field of the color values.
Preset
Set the LED checkboxes according the default for the object type.
Rotate
If the WS2811 board is operated with power supplied from the right, Rotate the LEDs by 180°.
Test
Here, the assignment, position, and function of the LEDs on the circuit board can be tested.
Color
Mapping
The color mapping depends on the object type.
Common are block and route states.
The checkbox can be used to activate blinking.
Brightness
The brightness of the WS2812 LEDs.
Preset Color
If this is enabled, the color and brightness settings from the preferences will be used.
Delay
Controls the blinking frequency.
Copy/Paste
For copying the color into another CTC module setup.

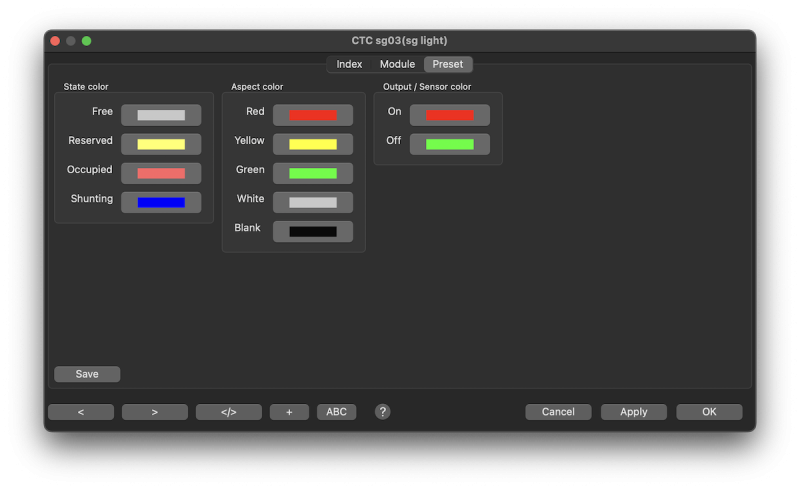

Preset
Set the default colors.
Preset
Save
Save the preset colors in the Rocview properties.

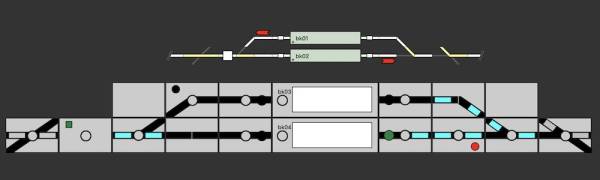

CTC Simulation
- Initialise after startup with Control → Start of day → Init field
