• Mobile Databank

The idea behind the LocoDB/CarDB/TrainDB is to be able to access all locomotives/cars/trains on all computers with access to the same NAS/Cloud storage.
Even with an offline Rocview it will be able to access the locomotives and check their properties.

Without read and write access of the RocrailDB this concept will not work.

Notes:

• Instead of "RocrailDB", can also use a different name for the database directory that is compatible with your operating system.
• Rocrail does not create the database directory automatically. It must be created initially by the user in the NAS/cloud storage.

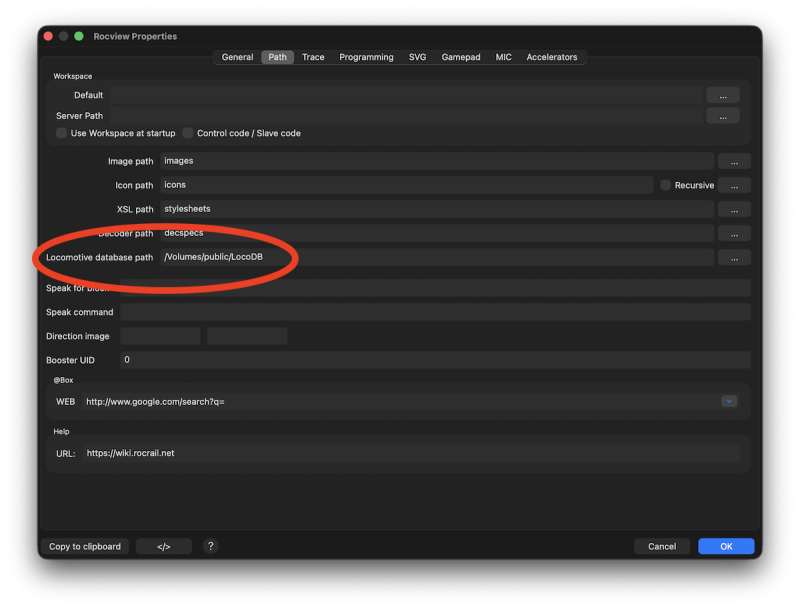

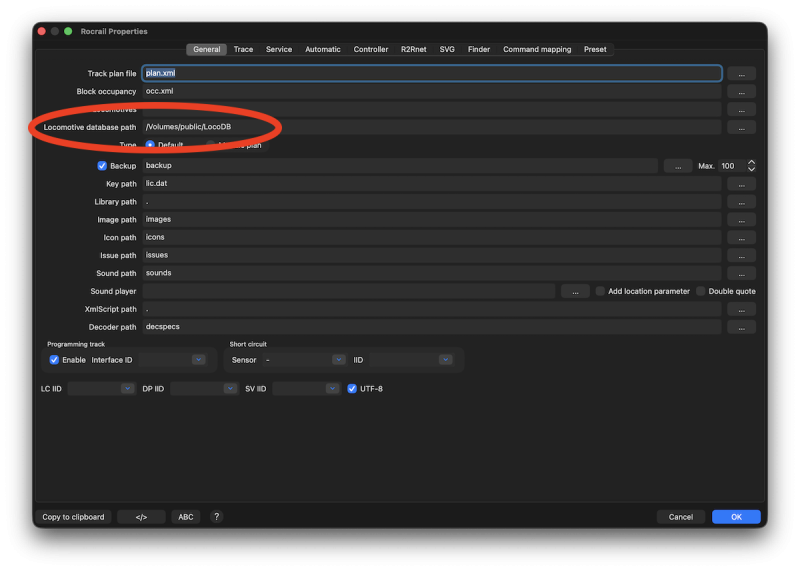

The Database path points to a directory which can be read and write by all users running Rocrail.
Every loco has its own directory named by its ID. Blanks are replaced with underscores; Blanks in IDs are discouraged and not supported.

<code>
RocrailDB
├── CarDB
│   ├── EssoTank
│   │   ├── backup
│   │   │   └── 20251017162241462-EssoTank.xml
│   │   ├── EssoTank.xml
│   │   └── M4524.png
│   ├── Frico
│   │   ├── backup
│   │   ├── Frico.xml
│   │   └── M4524.png
│   .
│   .
│
├── LocoDB
│   ├── BR01097
│   │   ├── backup
│   │   │   ├── 20251016161334845-BR01097.xml
│   │   │   ├── 20251016161340115-BR01097.xml
│   │   │   └── 20251017075932411-BR01097.xml
│   │   ├── BR01097.png
│   │   ├── BR01097.xml
│   │   └── DB01.png
│   ├── BR120119-3
│   │   ├── BR120119-3.xml
│   │   └── m33535.png
│   .
│   .
│   .
│   └── V1002215
│       ├── DB100.png
│       ├── m3072.png
│       └── V1002215.xml
│
└── TrainDB
    └── Freight_train
        ├── backup
        |   └── 20251017162241462-Freight_train.xml
        └── Freight_train.xml

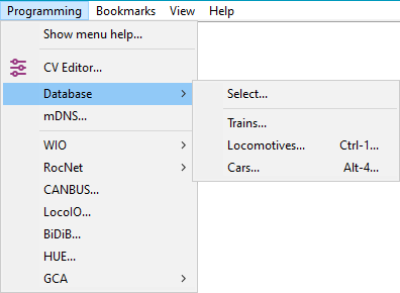

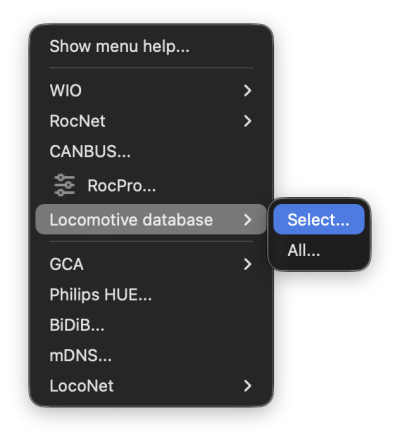

The directory of a train (in TrainDB), a locomotive (in LocoDB), or a car (in CarDB) can be selected in the file manager.
The object will then be displayed in the specific index dialog.

The specific index dialogs then are displayed with all trains, locomotives or cars.

The group field can be used as filter.

The "Workspace" and "Scale name" is used as selection in the RocrailDB in case of automatically loading.

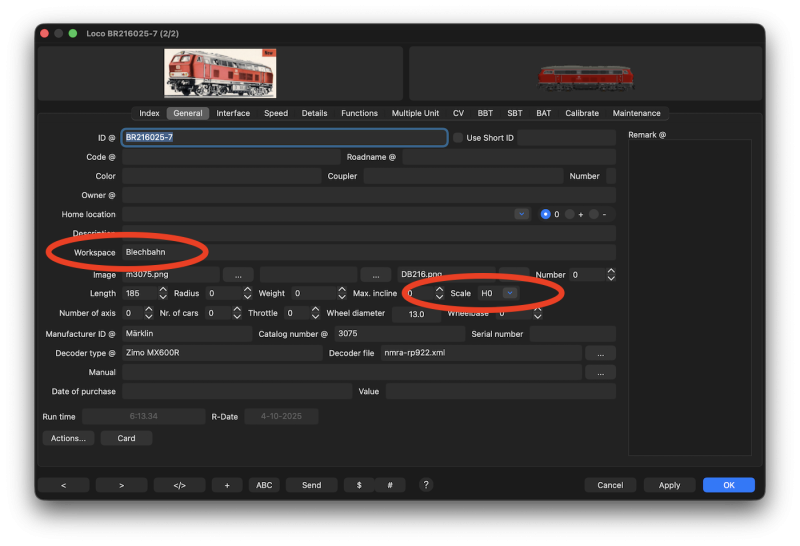

For selecting a object from the RocrailDB the "Workspace" and/or "Scale" field in the object properties should contain a value which match the Plan properties.

The Workspace field accepts a CSV list of multiple names.
The group field can be used as extra filter.
Example:

"layoutA,layoutB,layoutC"

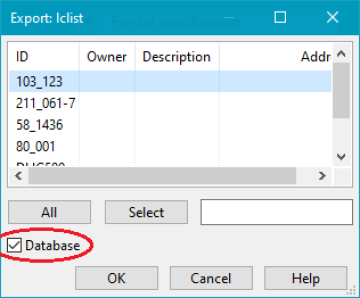

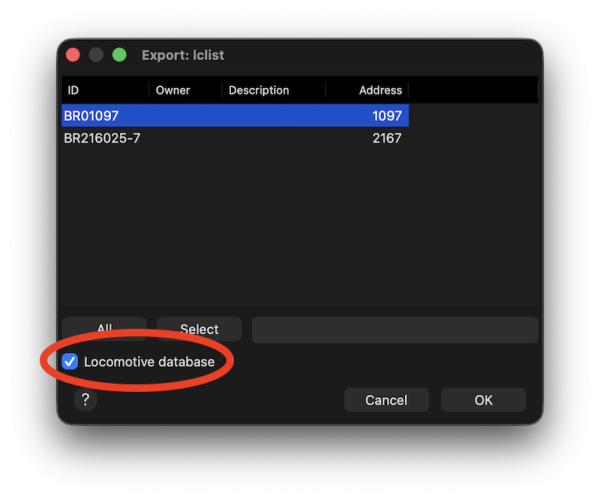

In the "Export" dialogs for trains, locomotives, or cars, the selected objects can be exported to RocrailDB using the "Database" option.
The export will overwrite existing files.

Trains, locomotives and cars will be automatically loaded from the RocrailDB if following is all true:

1. No local trains, locomotives and cars are defined.
2. The database path exists and is accessible.

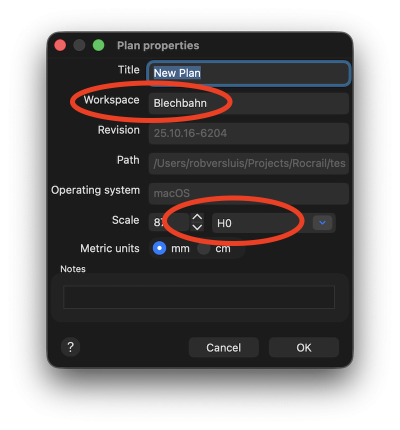

3. The Plan properties contains a selection by Workspace and/or Scale-Name.
4. Trains, locomotives and cars in the RocrailDB matches the Plan properties criterium.
