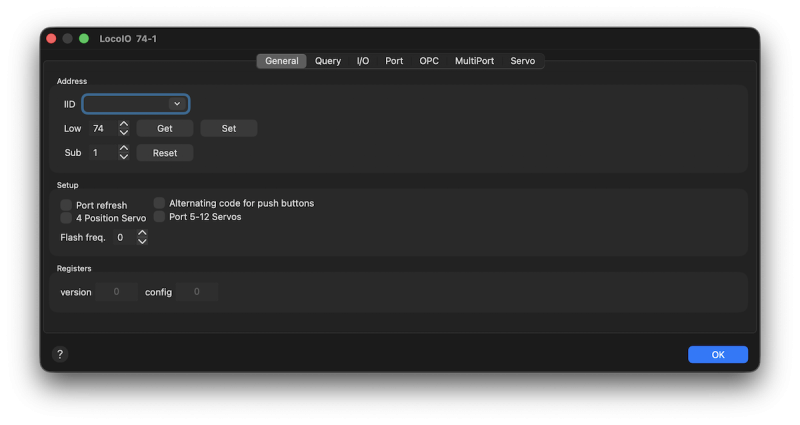

LocoIO General
Module Address
Low
The module address is composed from the Low and Sub address and defaults to 81/1. The range for both is 1-126.
See also: GCA50 Configuration.
The address on the General Tab is used for all further Tabs.
Sub
Low-Address + Sub-address can be out of the range from 1 to 126.
This address can also be changed by double clicking on one off the Query List entries.
It is not possible to change the Low and Sub address at the same time; change them separately.
Note: Sub-Address 70 is reserved for WIOpicoLNet.
Reset
With reset all connected LocoIO based module will be programmed with the address 81/1.
This is only needed if the address is unknown or the module does not react on commands. Make sure only that module is connected to the LocoNet!
A warning is shown if this action is selected:
Only the address registers are overwritten at this point. But if more than one units are listening to this address all further modifications will take place on all of them! So take care!
As alternative all available addresses can be listed with the Query button. For more details read the description of the address tab of this dialog.
Setup
Registers
LocoIO SV Documentation
The opcode OPC_PEER_XFER is used to exchange data between computer and decoder.
Detailed SV information:
- LocoIO (EN)
